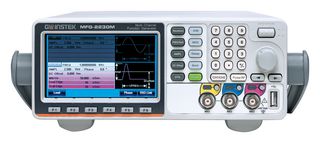

MFG-2230M
Function Generator, Arbitrary, Pulse, 2 Channel, 30 MHz, MFG2000 Series
| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | MFG-2230MCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2930384 |
| Product Range | MFG-2000 Series |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.76,061.540 |
Product Information
| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | MFG-2230MCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 2930384 |
| Product Range | MFG-2000 Series |
| Technical Datasheet | |
| Signal Generator Type | Arbitrary, Function, Pulse |
| No. of Channels | 2 Channel |
| Product Range | MFG-2000 Series |
| Bandwidth | 30MHz |
| Signal Generator Modulation | AM, ASK, FM, FSK, PM, PSK, PWM |
| Manufacturer Warranty | 1 Year |
| Plug Type | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
MFG-2000 series multi-channel function generator, which has up to 5 simultaneous output channels, including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 30MHz for both channels; pulse generator, whose frequency reaches 25MHz. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
- 4.3 inch TFT colour display
Applications
Test & Measurement
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| Signal Generator Type | Arbitrary, Function, Pulse |
|---|---|
| Product Range | MFG-2000 Series |
| Signal Generator Modulation | AM, ASK, FM, FSK, PM, PSK, PWM |
| Plug Type | - |
| No. of Channels | 2 Channel |
|---|---|
| Bandwidth | 30MHz |
| Manufacturer Warranty | 1 Year |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90309090 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 4.8 |
