SFG-1013
Function Generator, Direct Digital Synthesis (DDS), 1 Channel, 3 MHz, SFG-1000 Series

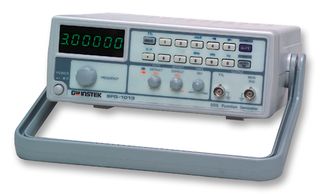

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | SFG-1013Copy |
| Order Code | 1563805 |
| Product Range | SFG-1000 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | GW INSTEK |
|---|---|
| Manufacturer Part No | SFG-1013Copy |
| Order Code | 1563805 |
| Product Range | SFG-1000 Series |
| Technical Datasheet | |
| Signal Generator Type | Direct Digital Synthesis (DDS) |
| No. of Channels | 1 Channel |
| Product Range | SFG-1000 Series |
| Bandwidth | 3MHz |
| Signal Generator Modulation | AM |
| Manufacturer Warranty | - |
| Plug Type | EU, UK |
| SVHC | To Be Advised |
Product Overview
A great value DDS Function generator with voltage display with a high accuracy and high stability output. The waveform synthesis is based on DDS technology and output waveforms include sine, square, triangle and TTL types.
- 6 Digit LED display
- DDS Technology and FPGA design
- 0.1Hz to 3MHz frequency range
- Sine, Square, Triangle and TTL output
- High frequency accuracy and stability (+-20ppm)
- Voltage display
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Technical Specifications
| Signal Generator Type | Direct Digital Synthesis (DDS) |
|---|---|
| Product Range | SFG-1000 Series |
| Signal Generator Modulation | AM |
| Plug Type | EU, UK |
| No. of Channels | 1 Channel |
|---|---|
| Bandwidth | 3MHz |
| Manufacturer Warranty | - |
| SVHC | To Be Advised |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90329000 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 2.1 |
