1455P1602BK..

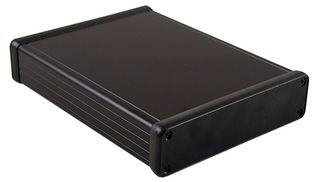

Metal Enclosure, Small, Extruded Aluminium, 30.5 mm, 125 mm, 160 mm, IP54
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HAMMOND |
|---|---|
| Manufacturer Part No | 1455P1602BK..Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 1511230 |
| Product Range | 1455 Series |
| Also Known As | GTIN UPC EAN: 623980582726 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.3,247.860 |
| 5+ | Rs.2,804.940 |
| 10+ | Rs.2,629.110 |
| 20+ | Rs.2,460.880 |
| 50+ | Rs.2,292.650 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.3,247.86
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HAMMOND |
|---|---|
| Manufacturer Part No | 1455P1602BK..Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 1511230 |
| Product Range | 1455 Series |
| Also Known As | GTIN UPC EAN: 623980582726 |
| Technical Datasheet | |
| Enclosure Type | Small |
| Enclosure Material | Extruded Aluminium |
| External Height - Metric | 30.5mm |
| External Width - Metric | 125mm |
| External Depth - Metric | 160mm |
| IP Rating | IP54 |
| Body Colour | Black |
| NEMA Rating | - |
| External Height - Imperial | 1.2" |
| External Width - Imperial | 4.92" |
| External Depth - Imperial | 6.3" |
| Product Range | 1455 Series |
| SVHC | No SVHC (04-Feb-2026) |
| Configurable | Yes |
Product Overview
- Designed to house P.C. boards or for equipment interfacing
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
- Easy to machine - one piece - front & back plastic end panels
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm)
- Extruded aluminium body with a slide removable "belly" plate
- Two easy to machine, black solid ABS plastic end panels with integral bezel
- Extruded aluminum body
- Self adhesive clear rubber feet
Notes
Recommended screw torque is 5 lbf/in
Technical Specifications
| Enclosure Type | Small |
|---|---|
| External Height - Metric | 30.5mm |
| External Depth - Metric | 160mm |
| Body Colour | Black |
| External Height - Imperial | 1.2" |
| External Depth - Imperial | 6.3" |
| SVHC | No SVHC (04-Feb-2026) |
| Enclosure Material | Extruded Aluminium |
|---|---|
| External Width - Metric | 125mm |
| IP Rating | IP54 |
| NEMA Rating | - |
| External Width - Imperial | 4.92" |
| Product Range | 1455 Series |
| Configurable | Yes |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Canada Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 73269099 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .45 |
