| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 02 02 160 2301Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1608536 |
| Product Range | har-bus 64 |
| Your Part Number | |
| Technical Datasheet |
20 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.3,218.320 |
| 5+ | Rs.3,153.960 |
| 10+ | Rs.3,089.590 |
| 25+ | Rs.3,025.230 |
| 50+ | Rs.2,960.860 |
Product Information
| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 02 02 160 2301Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 1608536 |
| Product Range | har-bus 64 |
| Technical Datasheet | |
| Product Range | har-bus 64 |
| No. of Contacts | 160Contacts |
| Pitch Spacing | 2.54mm |
| Gender | Receptacle(View Associated Connectors) |
| Contact Termination Type | Press Fit |
| No. of Rows | 5Rows |
| Row Pitch | 2.54mm |
| Contact Material | - |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

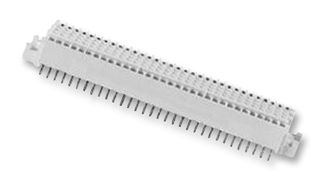

The 02021602301 is a 2.54mm 160-position 5-row female HAR-BUS® 64 VME64X Extension Connector System for data transfer rates up to 320Mbps. Straight orientation, with flange, copper alloy contacts and press-in termination. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PL 2 according to IEC 61076-4-113 250 mating cycles
- Additional contacts for I/O and system upgrade
- Supports plug-and-play function
- Improved signal/ground ratio for reliable signal data transfer
- Live insertion for replacing processor or memory cards without closing down system
Applications
Industrial
Technical Specifications
| Product Range | har-bus 64 |
|---|---|
| Pitch Spacing | 2.54mm |
| Contact Termination Type | Press Fit |
| Row Pitch | 2.54mm |
| Contact Plating | Gold Plated Contacts |
| No. of Contacts | 160Contacts |
|---|---|
| Gender | Receptacle |
| No. of Rows | 5Rows |
| Contact Material | - |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02835 |
