09 69 310 0055

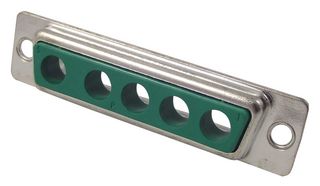

D Sub Connector Housing, 5 Ways, Combo Layout D Sub, DB-5W5, D Sub-M, Plug, Steel Body
387 In Stock
Need more?
387 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.442.100 |
| 10+ | Rs.433.260 |
| 100+ | Rs.424.420 |
| 250+ | Rs.415.580 |
| 500+ | Rs.406.740 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.442.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HARTING |
|---|---|
| Manufacturer Part No | 09 69 310 0055Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1207592 |
| Product Range | D Sub-M |
| Technical Datasheet | |
| No. of Positions | 5Ways |
| Connector Type | Combo Layout D Sub |
| Connector Shell Size | DB-5W5 |
| Product Range | D Sub-M |
| Gender | Plug(View Associated Connectors) |
| Connector Body Material | Steel Body |
| For Use With | D Sub-M Series Pin Contacts |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 09 69 310 0055 is a 5W5 Combination D-sub Plug, shell without signal contacts for cable applications. Solder cup or crimp special contacts termination. HARTING’s D-Sub Mixed connector range is designed around the standard D-Sub shell sizes, whereas standard signal contacts are mixed with coaxial, power, high voltage and even pneumatic contacts.
Applications
Industrial
Technical Specifications
| No. of Positions | 5Ways |
|---|---|
| Connector Shell Size | DB-5W5 |
| Gender | Plug |
| For Use With | D Sub-M Series Pin Contacts |
| Connector Type | Combo Layout D Sub |
|---|---|
| Product Range | D Sub-M |
| Connector Body Material | Steel Body |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0096 |
