09150006105
Heavy Duty Connector Contact, Han D, Pin, 18 AWG, Crimp, 10 A, Copper
220 In Stock
Need more?
220 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.186.700 |
| 10+ | Rs.163.360 |
| 100+ | Rs.135.350 |
| 500+ | Rs.132.650 |
| 1000+ | Rs.129.940 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.186.70
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARTING
Manufacturer Part No09150006105Copy
Manufacturer Standard Lead Time10 weeks
Order Code2576138
Product RangeHan D
Technical Datasheet
Product RangeHan D
Contact GenderPin
Wire Size AWG Max18AWG
Contact Termination TypeCrimp
Current Rating10A
Contact MaterialCopper
Contact PlatingSilver Plated Contacts
SVHCNo SVHC (25-Jun-2025)
Product Overview

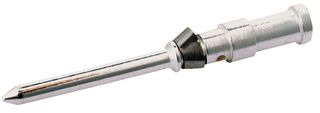

The 09150006105 is a male Han D Crimp Contact made of copper alloy with silver plated finish. It accepts 18AWG wire.
- 10A Rated current
- 8mm Stripping length
- 0.75 mm² conductor cross-section
- ≤3mΩ Contact resistance
Applications
Industrial, Power Management
Technical Specifications
Product Range
Han D
Wire Size AWG Max
18AWG
Current Rating
10A
Contact Plating
Silver Plated Contacts
Contact Gender
Pin
Contact Termination Type
Crimp
Contact Material
Copper
SVHC
No SVHC (25-Jun-2025)
Technical Docs (3)
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000681
