M50-9101042

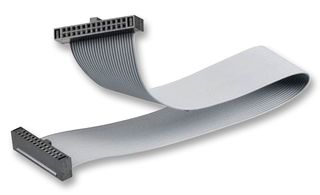

Ribbon Cable, IDC Receptacle to IDC Receptacle, 20 Ways, 5.91 ", 150 mm, 1.27 mm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M50-9101042Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2289826 |
| Product Range | Archer M50 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.1,214.620 |
| 10+ | Rs.1,083.460 |
| 100+ | Rs.907.600 |
| 250+ | Rs.836.060 |
| 500+ | Rs.816.190 |
| 1000+ | Rs.792.340 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,214.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M50-9101042Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 2289826 |
| Product Range | Archer M50 Series |
| Technical Datasheet | |
| Connector to Connector | IDC Receptacle to IDC Receptacle |
| No. of Positions | 20Ways |
| Cable Length - Imperial | 5.91" |
| Cable Length - Metric | 150mm |
| Connector Pitch | 1.27mm |
| Product Range | Archer M50 Series |
| Cable Assembly Type | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The M50-9101042 is a 150mm 20-way IDC Ribbon Cable Assembly, female-to-female connectors, UL94V-0-rated black PBT housing, 100% tin-plated over nickel termination, gold-plated contact surface and phosphor bronze contact. IDC contact for high speed termination. Polarised to prevent mis-mating and secure cable retention with positive latching to header.
- 1.27mm (0.05") Contact pitch
- Angled connector orientation
- 0.5A Current rating
- 1Ω Maximum contact resistance
- 5MΩ Minimum insulation resistance
- 300VDC Minimum working voltage
- -40 to +105°C Operating temperature range
Applications
Commercial, Industrial
Technical Specifications
| Connector to Connector | IDC Receptacle to IDC Receptacle |
|---|---|
| Cable Length - Imperial | 5.91" |
| Connector Pitch | 1.27mm |
| Cable Assembly Type | - |
| No. of Positions | 20Ways |
|---|---|
| Cable Length - Metric | 150mm |
| Product Range | Archer M50 Series |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .05 |
