S8081-46R
Shield Clip, RFI, Horizontal, Stainless Steel, Surface Mount, 3mm x 1mm Clip Size

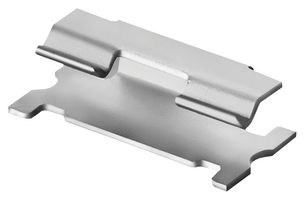

Image is for illustrative purposes only. Please refer to product description.
Unable to Retrieve Availability Information
Product Information
ManufacturerHARWIN
Manufacturer Part NoS8081-46R
Order Code3754416
Technical Datasheet
Clip Type-
Clip Diameter-
Mounting Hole Dia-
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- SMT removable jumper link clip
- Horizontal surface mount clip for removable jumper link applications
- Tin finish
- Use with S07-46 23mm long removable bar or S08-46 15mm long removable bar
- Accepts Ø0.7mm cross-section
- Operating temperature range from -40°C to 85°C
- Side entry style, one signal contact
- Mating pin size is Ø0.7mm
- Stainless Steel base material of contact
- 3mm x 1.4mm x 0.84mm overall dimension (L x W x D)
Technical Specifications
Clip Type
-
Mounting Hole Dia
-
SVHC
No SVHC (21-Jan-2025)
Clip Diameter
-
Product Range
-
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:South Korea
Country in which last significant manufacturing process was carried out
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000006
