| Manufacturer | HIROSE / HRS |
|---|---|
| Manufacturer Part No | DF3-2428SCCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1719200 |
| Product Range | DF3 |
| Also Known As | 543-0002-5-00 |
| Your Part Number | |
| Technical Datasheet |
5,855 In Stock
28,700 more incoming. You can reserve stock now
5,855 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | Rs.13.570 |
| 1000+ | Rs.11.040 |
| 2500+ | Rs.9.970 |
| 5000+ | Rs.9.570 |
| 10000+ | Rs.9.180 |
| 20000+ | Rs.9.000 |
Price for:Each
Minimum: 100
Multiple: 100
Rs.1,357.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HIROSE / HRS |
|---|---|
| Manufacturer Part No | DF3-2428SCCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1719200 |
| Product Range | DF3 |
| Also Known As | 543-0002-5-00 |
| Technical Datasheet | |
| Product Range | DF3 |
| Contact Gender | Socket |
| Contact Termination Type | Crimp |
| Wire Size AWG Max | 28AWG |
| Contact Plating | Tin Plated Contacts |
| For Use With | DF3 Series Connectors |
| Wire Size AWG Min | 24AWG |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

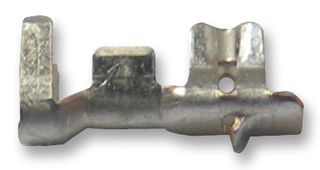

The DF3-2428SC from Hirose is a crimp socket contact. This contact is suitable for use with DF3 series 2mm pitch socket connectors.
- Rated current of 3A
- Rated voltage of 250VAC
- Panel mounting style is screw
- Made of phosphor bronze with gold plating
- Wire size range from 28AWG to 24AWG
- Operating temperature range from -35°C to 85°C
- Wire insulation diameter range from 0.75mm to 1.45mm
Technical Specifications
| Product Range | DF3 |
|---|---|
| Contact Termination Type | Crimp |
| Contact Plating | Tin Plated Contacts |
| Wire Size AWG Min | 24AWG |
| SVHC | No SVHC (04-Feb-2026) |
| Contact Gender | Socket |
|---|---|
| Wire Size AWG Max | 28AWG |
| For Use With | DF3 Series Connectors |
| Contact Material | Phosphor Bronze |
Technical Docs (2)
Alternatives for DF3-2428SC
5 Products Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000077 |
