HR25A-9P-20P

Circular Connector, HR25A Series, Cable Mount Plug, 20 Contacts, Solder Pin, Brass Zinc Alloy Body

HR25A-9P-20P - Circular Connector, HR25A Series, Cable Mount Plug, 20 Contacts, Solder Pin, Brass Zinc Alloy Body

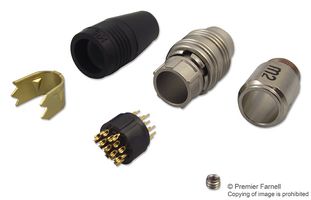

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
HR25A-9P-20P
Order Code:
2427538
Product Range
HR25A Series
Also Known As:
125-0600-2-00
Technical Datasheet:
HR25A-9P-20P   Datasheet
See all Technical Docs

Product Overview

The HR25A-9P-20P is a 20-position male miniature Circular Connector with gold plated phosphor bronze contacts and a PPS insulator. It has nickel plated zinc alloy outer shell and comes with a ethylene propylene rubber gasket and chloroprene rubber boots. The HR25A series plug has soldering wire termination method and push-pull locking style. It is recommended for use with 28AWG wire. It features polarized for correct insertion by a straight push-in movement. Built-in release mechanism securely locks mated connectors while allowing quick connection by simply pulling on the plug release collar. Secure locks between the metal shells provide excellent ground connection for the application requiring EMI protection.
  • Small size, high density
  • Small size, high density
  • Metal shells
  • 7mm Cable outer diameter
  • 1A Rated current
  • 30VAC, 42VDC Rated voltage
  • 30mR Maximum contact resistance
  • 1000MR Minimum insulation resistance
  • 100VAC for one minute Withstanding voltage
  • 1000 Mating/unmating cycles

Applications

Industrial

Product Information


:
HR25A Series

:
Cable Mount Plug

:
20Contacts

:
Solder Pin

:
-

:
Brass Zinc Alloy Body

:
-

:
Phosphor Bronze

:
Gold
