| Manufacturer | HONEYWELL |
|---|---|
| Manufacturer Part No | V15T16-CZ100A03Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3439118 |
| Product Range | V15 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.591.720 |
| 5+ | Rs.558.890 |
| 10+ | Rs.526.050 |
| 20+ | Rs.506.950 |
| 50+ | Rs.487.840 |
Product Information
| Manufacturer | HONEYWELL |
|---|---|
| Manufacturer Part No | V15T16-CZ100A03Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 3439118 |
| Product Range | V15 Series |
| Technical Datasheet | |
| Microswitch Type | Standard |
| Microswitch Actuator | Long Straight Lever |
| Contact Configuration | SPDT |
| Switch Terminals | Quick Connect |
| Contact Current Max | 16A |
| Contact Voltage DC Nom | - |
| Product Range | V15 Series |
| Contact Voltage AC Nom | 250V |
| Operating Force Max | 100gf |
| SVHC | No SVHC (07-Jul-2017) |
Product Overview

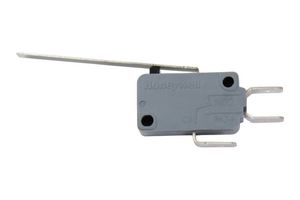

V15T16-CZ100A03 is a V15 series, MICRO SWITCH™ V-Basic standard electromechanical basic switch. This electromechanical switch designed for enhanced reliability at a great value. This switch is often ideal for “low cost-of-failure” – where the cost to replace the switch or to service any failure related to the switch is minimal. The V15 is designed for applications requiring ≥ 100g of operating force and electrical ratings ranging from 16A to 26A. The V15 series switch offers a wide range of standard offerings, including a choice of actuators, electrical ratings, operating forces, and circuitry, and holds global approvals (ENEC, CQC, UL, cUL). Potential applications include appliance, gaming, vending machines, water heaters, industrial controls.
- 125°C temperature grade, ENEC/CQC: 16(4)A 250Vac UL/cUL: 16 1/2HP 125/250Vac (electrical rating)
- 6.35 x 0.80mm quick disconnect termination style, SPDT circuit
- 100gf 0.98 N max operating force at pin plunger, far from pin plunger lever
- Long straight lever type, metric Ø3.1mm mounting holes
- Broad range of electrical loads, precision operation and application versatility
- Accepts insulated connections, most quick connect openings
- Reliability, repeatability within range of conditions
- ≥ 100mohm (500Vdc) insulation resistance
- 100milliohm max contact resistance
- Storage temperature range from -25°C to 100°C
Technical Specifications
| Microswitch Type | Standard |
|---|---|
| Contact Configuration | SPDT |
| Contact Current Max | 16A |
| Product Range | V15 Series |
| Operating Force Max | 100gf |
| Microswitch Actuator | Long Straight Lever |
|---|---|
| Switch Terminals | Quick Connect |
| Contact Voltage DC Nom | - |
| Contact Voltage AC Nom | 250V |
| SVHC | No SVHC (07-Jul-2017) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Jul-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005 |
