F3L225R12W3H3B11BPSA1
IGBT Module, Three level Inverter, 175 A, 2.07 V, 20 mW, 150 °C, Module

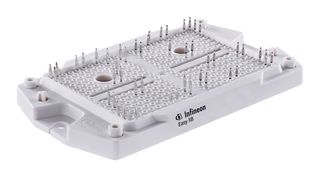

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoF3L225R12W3H3B11BPSA1
Order Code4216506
Product RangeEasyPack Series
Also Known AsF3L225R12W3H3_B11, SP005675779
Your Part Number
Technical Datasheet
8 In Stock
Need more?
8 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.10,833.120 |
| 5+ | Rs.10,478.640 |
| 10+ | Rs.10,124.150 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.10,833.12
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoF3L225R12W3H3B11BPSA1
Order Code4216506
Product RangeEasyPack Series
Also Known AsF3L225R12W3H3_B11, SP005675779
Technical Datasheet
IGBT ConfigurationThree level Inverter
Continuous Collector Current175A
Collector Emitter Saturation Voltage2.07V
Power Dissipation20mW
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 High Speed
Transistor MountingPanel
Product RangeEasyPack Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
IGBT Configuration
Three level Inverter
Collector Emitter Saturation Voltage
2.07V
Operating Temperature Max
150°C
IGBT Termination
Press Fit
IGBT Technology
IGBT 3 High Speed
Product Range
EasyPack Series
Continuous Collector Current
175A
Power Dissipation
20mW
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85381090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00063
