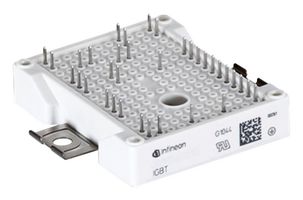

FS75R07W2E3B11ABOMA1
IGBT Module, Six Pack [Full Bridge], 95 A, 1.45 V, 275 W, 150 °C, Module
Available to Order
Manufacturer Standard Lead Time: 28 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.5,056.510 |
| 5+ | Rs.4,606.720 |
| 10+ | Rs.4,156.930 |
| 50+ | Rs.4,073.800 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.5,056.51
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS75R07W2E3B11ABOMA1
Order Code3267603
Product RangeEasyPACK
Also Known AsFS75R07W2E3_B11A, SP000865130
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current95A
Collector Emitter Saturation Voltage1.45V
Power Dissipation275W
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max650V
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEasyPACK
SVHCNo SVHC (21-Jan-2025)
Product Overview
FS75R07W2E3B11ABOMA1 is an EasyPACK module with Trench/Fieldstop IGBT3 and emitter controlled. Typical applications include hybrid electrical vehicles, motor drives and air conditioning.
- Collector-emitter- voltage Vces of 650V(Tvj = 25°C)
- Continuous DC collector current Ic of 75A(Tc = 80°C, Tvj max = 175°C )
- Repetitive peak collector current of 150A(tp = 1ms)
- Total power dissipation of 275W
- Low switching losses
- Rugged mounting due to integrated mounting clamps
- High power density and compact design
- Integrated NTC temperature sensor
