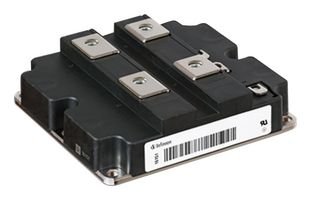

FZ2400R12HP4HOSA2
IGBT Module, Single Switch, 2.4 kA, 1.7 V, 12.5 kW, 175 °C, Module
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.72,421.050 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.72,421.05
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFZ2400R12HP4HOSA2
Order Code3227678
Product RangeIHM-B
Also Known AsFZ2400R12HP4, SP001172160
Technical Datasheet
IGBT ConfigurationSingle Switch
Continuous Collector Current2.4kA
Collector Emitter Saturation Voltage1.7V
Power Dissipation12.5kW
Operating Temperature Max175°C
Transistor Case StyleModule
IGBT TerminationTab
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeIHM-B
SVHCNo SVHC (21-Jan-2025)
Product Overview
FZ2400R12HP4HOSA2 is a 1200V single switch IGBT module with soft-switching Trench-IGBT4. Potential applications include high-power converters, motor drives, wind turbines.
- High power density, standardized IHMB housing
- Extended operation temperature Tvj op
- 4KV AC 1min insulation
- Package with CTI > 400, UL recognized
- 140mm width, 130mm length
- Collector-emitter voltage is 1200V at Tvj = 25°C
- Continuous DC collector current is 2400A at TC = 95°C, Tvj max = 175°C
- Forward voltage is 1.8V typ at IF = 2400A, VGE = 0V, Tvj = 25°C
- Temperature under switching conditions range from -40 to 150°C
