KITLGDBBOM003TOBO1

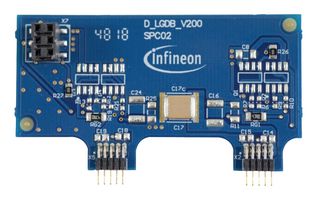

Daughter Board Kit, Low Voltage Drive Scalable Power Demo Boards
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGDBBOM003TOBO1Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3994026 |
| Also Known As | SP003843208, KIT_LGDB_BOM003 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.2,780.310 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,780.31
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGDBBOM003TOBO1Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3994026 |
| Also Known As | SP003843208, KIT_LGDB_BOM003 |
| Technical Datasheet | |
| Accessory Type | Daughter Board Kit |
| For Use With | Low Voltage Drive Scalable Power Demo Boards |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
KITLGDBBOM003TOBO1 is a daughter board kit for low voltage drives scalable power demo board. The daughter board is supporting the LVD scalable power demo board platform. It enables paralleling of the power boards and provides each additional MOSFET with the respective gate resistor. Used in prototyping forklifts and LEVs (low speed cars, e-scooters, 3-wheelers, golf cars), BPA BLDC motor drives, cordless power tools applications.
- Gate resistors on FR4 for ease of rework
- Additional ceramic capacitor connected to the DC bus
- Connection for paralleling of MOSFETs
Technical Specifications
| Accessory Type | Daughter Board Kit |
|---|---|
| Product Range | - |
| For Use With | Low Voltage Drive Scalable Power Demo Boards |
|---|---|
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
