Mother Board Kit, 2EDL23N06, Low Voltage Drive Scalable Power Demo Boards

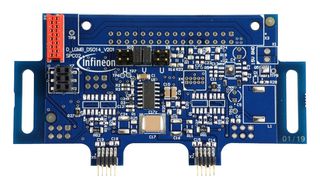

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGMBBOM503TOBO1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3994029 |
| Also Known As | SP003843204, KIT_LGMB_BOM503 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.6,935.900 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.6,935.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGMBBOM503TOBO1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3994029 |
| Also Known As | SP003843204, KIT_LGMB_BOM503 |
| Technical Datasheet | |
| Accessory Type | Mother Board Kit |
| For Use With | Low Voltage Drive Scalable Power Demo Boards |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
KITLGMBBOM503TOBO1 is a mother board kit for low voltage drives scalable power demo board. The kit mother boards serve as supporting boards for the LVD scalable power demo board platform. They provide the system with the gate drivers for driving the MOSFETs of the power boards. The mother board connects to the control through the primary mother board and does not connect to an individual control board. Suitable for prototyping forklifts and LEVs(low speed cars, e-scooters, 3-wheelers, golf cars), BPA BLDC motor drives, cordless power tools.
- Modular gate driver PCB with 2EDL23N06
- Gate resistors on FR4 for ease of rework
- Additional ceramic capacitor connected to the DC bus
- Optional branch out connection for paralleling of MOSFETs
- Dimension is 91mm x 48mm
