KITLGPWRBOM003TOBO1
Power Board Kit, Low Voltage Drive Scalable Power Demo Boards, OptiMOS 80V

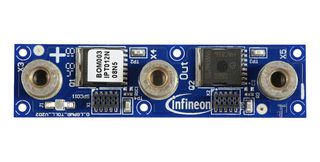

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGPWRBOM003TOBO1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3994031 |
| Also Known As | SP003597054, KIT_LGPWR_BOM003 |
| Your Part Number | |
| Technical Datasheet |
2 In Stock
Need more?
2 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.5,577.110 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.5,577.11
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | KITLGPWRBOM003TOBO1Copy |
| Manufacturer Standard Lead Time | 18 weeks |
| Order Code | 3994031 |
| Also Known As | SP003597054, KIT_LGPWR_BOM003 |
| Technical Datasheet | |
| Accessory Type | Power Board Kit |
| For Use With | Low Voltage Drive Scalable Power Demo Boards |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
KITLGPWRBOM003TOBO1 is a power board kit for low voltage drives scalable power demo board. This power board kit module utilizing the OptiMOS™ 80V MOSFET in TOLL package represents the power building block of the LVD scalable power demo board platform. It serves as a single half-bridge with power and gate drive interconnections, enabling easy build-up of any half-bridge based power topology. Suitable for prototyping forklifts and LEVs(low speed cars, e-scooters, 3-wheelers, golf cars), BPA BLDC motor drives and cordless power tools.
- Modular half-bridge power PCB with OptiMOS power MOSFETs for individual/parallel MOSFET applications
- IMS PCB for increased cooling
- SMD power terminals with M5 thread
- On-board test point terminals
- Dimension is 75mm x 19mm
Technical Specifications
| Accessory Type | Power Board Kit |
|---|---|
| Product Range | - |
| For Use With | Low Voltage Drive Scalable Power Demo Boards |
|---|---|
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
