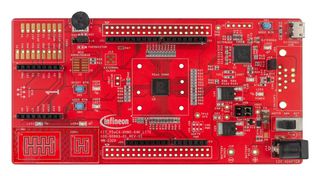

KITPSOC4-HVMS-128KLITE

KITPSOC4-HVMS-128KLITE is a PSOC™ 4 HVMS Lite Kit designed to accelerate development with the PSOC™ 4 HVMS series, offering a single-chip solution for advanced automotive smart edge-sensing applications. This powerful kit integrates a multi-sense converter, programmable analogue blocks, a high-voltage (12V) LDO, LIN PHY, and an ARM™ Cortex CPU, making it ideal for Human-Machine Interface (HMI) and sensing applications. This is a lite kit for the PSOC™ high-voltage (HV) mixed signal (MS) 128K microcontrollers, a fully integrated programmable embedded systems for automotive HMI, low-end body control, PTC heaters, safety applications, such as hands-on detect, passenger occupant detection, and other smart edge sensors. The system features an Arm® Cortex®-M0+ processor with programmable and reconfigurable analogue and digital blocks.

• Integrates a 42V-tolerant high-voltage LDO and LIN/CXPI PHY for robust performance
• Developed in accordance with ISO26262 for ASIL-B as a Safety Element out of Context (SEooC)
• Multi-sense converter with 5th-generation CAPSENSE™ technology for superior capacitive sensing
• Free software tools via ModusToolbox™ (peripheral driver library, CAPSENSE™ middleware library)
• ASPICE-qualified and ISO 26262-compliant software (AutoPDL, SafeTlib, and CAPSENSE™ MW)
• Directly connects to 12V battery supply and LIN/CXPI network, enabling footprint-optimized designs
• Delivers robust capacitive sensing with best-in-class signal-to-noise ratio (SNR)
• Enabling sophisticated automotive HMI designs

Contents

KIT-PSoC4-HVMS-128K-LITE main board, USB cable.
