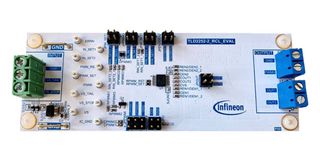

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLD22522RCLEVALTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3879730 |
| Also Known As | SP005550086, TLD2252-2_RCL_EVAL |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.11,713.930 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.11,713.93
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | TLD22522RCLEVALTOBO1Copy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | 3879730 |
| Also Known As | SP005550086, TLD2252-2_RCL_EVAL |
| Technical Datasheet | |
| Device Topology | Linear |
| No. of Outputs | 2Outputs |
| Output Current | 100mA |
| Output Voltage | - |
| Input Voltage Min | 8V |
| Input Voltage Max | 16V |
| Core Chip | TLD2252-2EP |
| Dimming Control Type | PWM |
| Kit Contents | Eval Board TLD2252-2EP |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
TLD22522RCLEVALTOBO1 is an evaluation-board for LITIX™ Basic+ TLD2252-2EP. The purpose of the TLD2252-2EP rear combination lamp evaluation-board (TLD2252-2_RCL_EVAL) board is to help designers evaluate the features and the performance of the TLD2252-2EP, a two-channel linear current source LED driver for automotive LED lighting applications. TLD2252-2EP provides a simple and compact solution for the implementation of a rear combination lamp (RCL).
- Typical supply voltage range 8V to 16V
- Easy evaluation of the internal PWM-engine
- Possibility to use the PWM-engine to drive other Basic+ devices
- Possibility to connect to external load
Technical Specifications
| Device Topology | Linear |
|---|---|
| Output Current | 100mA |
| Input Voltage Min | 8V |
| Core Chip | TLD2252-2EP |
| Kit Contents | Eval Board TLD2252-2EP |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 2Outputs |
|---|---|
| Output Voltage | - |
| Input Voltage Max | 16V |
| Dimming Control Type | PWM |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85381090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .24 |
