ILH-XP01-S365-SC211-WIR200.

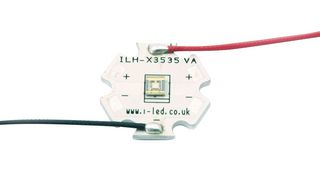

UV Emitter Module, 1 Chip, 365 to 375 nm, 110˚ (±55°), 1.05 W, 200 mm Red & Black, Star PCB
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINTELLIGENT LED SOLUTIONS
Manufacturer Part NoILH-XP01-S365-SC211-WIR200.
Order Code3585902
Product RangeN3535 PowerStar UV Series
Technical Datasheet
11 In Stock
15 more incoming. You can reserve stock now
11 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,897.430 |
| 5+ | Rs.1,861.780 |
| 10+ | Rs.1,732.940 |
| 50+ | Rs.1,678.050 |
| 100+ | Rs.1,617.300 |
| 250+ | Rs.1,602.930 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,897.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINTELLIGENT LED SOLUTIONS
Manufacturer Part NoILH-XP01-S365-SC211-WIR200.
Order Code3585902
Product RangeN3535 PowerStar UV Series
Technical Datasheet
UV Emitter Module Type1 Chip UV Module
Product RangeN3535 PowerStar UV Series
Peak Wavelength365 to 375nm
Typical Wattage1.05W @ 350mA
Forward Voltage Range3.4V to 4.4V
Minimum Radiometric Power180mW
Radiance Angle110° (±55°)
Forward Current per Chip800mA
UV Emitter Module MountingStar PCB, M3 Holes - Heatsink Mount
UV Emitter Module Leads200mm Red & Black
Operating Temperature Max70°C
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
UV Emitter Module Type
1 Chip UV Module
Peak Wavelength
365 to 375nm
Forward Voltage Range
3.4V to 4.4V
Radiance Angle
110° (±55°)
UV Emitter Module Mounting
Star PCB, M3 Holes - Heatsink Mount
Operating Temperature Max
70°C
Product Range
N3535 PowerStar UV Series
Typical Wattage
1.05W @ 350mA
Minimum Radiometric Power
180mW
Forward Current per Chip
800mA
UV Emitter Module Leads
200mm Red & Black
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.007
