MDM-15PH003B
Micro D Cable Assembly, Micro-D Plug to Free End, 15 Ways, 18 ", 457.2 mm, Yellow, MDM Series

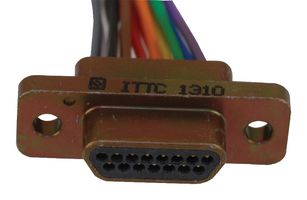

Image is for illustrative purposes only. Please refer to product description.
ManufacturerITT CANNON
Manufacturer Part NoMDM-15PH003B
Order Code2668396
Product RangeMDM Series
Technical Datasheet
198 In Stock
Need more?
198 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.11,060.640 |
| 10+ | Rs.10,915.440 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.11,060.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerITT CANNON
Manufacturer Part NoMDM-15PH003B
Order Code2668396
Product RangeMDM Series
Technical Datasheet
Connector to ConnectorMicro-D Plug to Free End
D Sub Connector TypeMicro D
No. of Positions15Ways
Cable Length - Imperial18"
Cable Length - Metric457.2mm
No. of Contacts15Contacts
Jacket ColourYellow
Contact Termination TypeCrimp
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product RangeMDM Series
SVHCNo SVHC (20-Jun-2016)
Product Overview
The MDM-15PH003B is a 15-way Crimp Cable Plug is designed with gold-plated copper contacts and accepts 26AWG wire range. The Micro D metal shell connector is designed to meet the rapidly increasing demands for an environmental, high performance, rugged, offer electromagnetic(EMI) and RFI shielding.
- Lightweight and small
- Highly reliable
- -55 to +125°C Operating temperature range
Applications
Industrial
Technical Specifications
Connector to Connector
Micro-D Plug to Free End
No. of Positions
15Ways
Cable Length - Imperial
18"
No. of Contacts
15Contacts
Contact Termination Type
Crimp
Contact Material
Copper Alloy
Product Range
MDM Series
D Sub Connector Type
Micro D
Gender
Plug
Cable Length - Metric
457.2mm
Jacket Colour
Yellow
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (20-Jun-2016)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (20-Jun-2016)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02268
