2280S-60-3
Bench Power Supply, Programmable, 1 Output, 0 V, 60 V, 0 A, 3.2 A

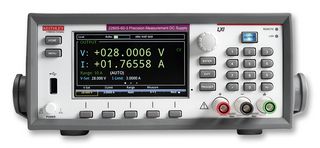

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | KEITHLEY |
|---|---|
| Manufacturer Part No | 2280S-60-3Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2444030 |
| Product Range | 2280S Series |
| Your Part Number | |
| Technical Datasheet |
3 In Stock
Need more?
3 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.375,885.390 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.375,885.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | KEITHLEY |
|---|---|
| Manufacturer Part No | 2280S-60-3Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 2444030 |
| Product Range | 2280S Series |
| Technical Datasheet | |
| Power Supply Output Type | Programmable |
| No. of Outputs | 1 Output |
| Output Voltage Min | - |
| Output Voltage Max | 60V |
| Output Current Min | - |
| Output Current Max | 3.2A |
| Power Rating | 192W |
| Supply Voltage Min | 90V |
| Supply Voltage Max | 240VAC |
| Manufacturer Warranty | 3 Years |
| Product Range | 2280S Series |
| Plug Type | EU, SWISS, UK |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The series 2280S precision measurement, low noise, programmable DC power supplies are much more than just sources of clean power; they are also precision measurement instruments. They can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps.
- Monitor load currents from 100nA to 6A with high accuracy
- Measure voltage and current with 61/2-digit resolution
- Capture dynamic load currents as short as 140µs
- Output up to 192W of low noise, linear regulated power
- Programmable rise and fall times eliminate voltage overshoot and undershoot transients
- Built-in graphing simplifies analysing trends or displaying voltage or current waveforms
- High resolution TFT display and soft-key/icon-based user interface simplify power supply operation
- Programmable output sequences reduce test times
- Sink up to 0.45A to discharge voltage quickly
- Digital I/O for direct communication with other devices and instruments
- GPIB, USB, and LAN interfaces
- Built-in web page simplifies automated control/monitoring
- Automate tests easily with KickStart start-up software
- 3 year manufacturer warranty
Contents
DC power supply, Quick start guide, KickStart quick start guide, User documentation CD, LAN crossover cable, Power cord, Rear panel mating and connector with cover.
Technical Specifications
| Power Supply Output Type | Programmable |
|---|---|
| Output Voltage Min | - |
| Output Current Min | - |
| Power Rating | 192W |
| Supply Voltage Max | 240VAC |
| Product Range | 2280S Series |
| SVHC | No SVHC (17-Dec-2014) |
| No. of Outputs | 1 Output |
|---|---|
| Output Voltage Max | 60V |
| Output Current Max | 3.2A |
| Supply Voltage Min | 90V |
| Manufacturer Warranty | 3 Years |
| Plug Type | EU, SWISS, UK |
Alternatives for 2280S-60-3
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90329000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 13.29 |
