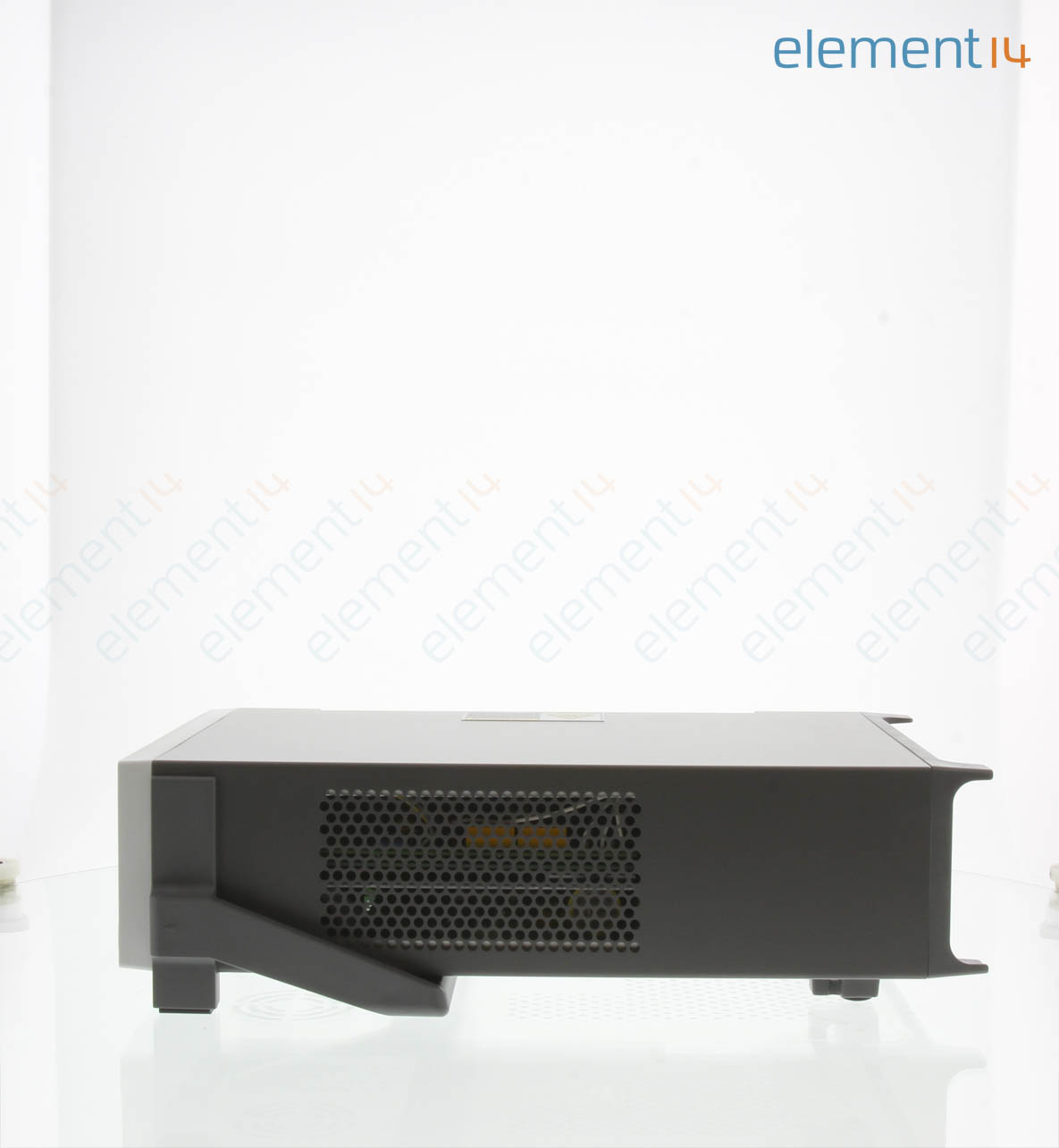

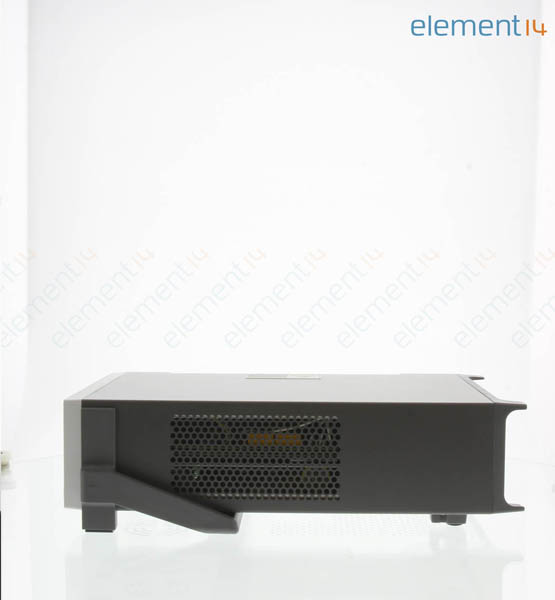

KEITHLEY 2410
Source Measure Unit SMU, SourceMeter, 1-Channel, 1100V, 1A, 20W
- Manufacturer:
- KEITHLEY KEITHLEY
- Manufacturer Part No:
- 2410
- Order Code:
- 2772527
- Product Range
- 2400 SourceMeter
- Technical Datasheet:
- 2410 Datasheet
- ECAD / MCAD
-
Product Range Selector (2400 SourceMeter)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 1Channels
- :
- 2400 SourceMeter
- :
- Current/Resistance/Voltage Measure, Current/Voltage Source
- :
- 20W
- :
- ± 200mV to ± 1kV
- :
- ± 1µA to ± 1A
- :
- 0.2ohm to 200Mohm
- :
- 1 Year
Technical Documents (4)
Product Overview
The 2410 from Keithley is a 1000V, 1A, 20W SourceMeter® unit (SMU) instrument. It is designed specifically for test applications that demand tightly coupled sourcing and measurement. This SMU provides precision voltage and current sourcing as well as measurement capabilities. It includes both a highly stable DC power source and true instrument grade 6.5 digit multimeter. The power source characteristics include low noise, precision and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single channel, DC parametric tester. In operation, it can act as voltage source, current source, voltage meter, current meter and ohmmeter. In operation, this instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter.
- Power of five instruments in one (IV source, IVR measure), source and sink (4-quadrant) operation
- 0.012% basic measure accuracy with 6½-digit resolution, up to 1000V sourcing
- 2-, 4-, and 6-wire remote V-source and measure sensing
- 1700 readings/second at 4.5 digits via GPIB
- Source and sink (four-quadrant) operation
- Pass/fail comparator for fast sorting/binning
- Programmable DIO port for automation/handler/prober control
- Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces
- Perform I-V characterization using Keithley's KickStart software
- 89mm (H) x 213mm (W) x 370mm (D) dimension, 4.1kg weight
Contents
2410 SourceMeter® unit, Model 8605 test leads, Documentation (downloadable), KickStart start-up software (downloadable), LabVIEW and IVI drivers (downloadable).
Footnotes
KickStart Limited Time Offer - FREE for 6 months when you purchase this item. Kickstart Software provided by Tektronix after purchase and completion of your details. Offer ends 31st December, 2023. (Not CN, IN, KR)
Warnings
Hazardous voltages may be present on all output and guard terminals. To prevent electrical shock that could cause injury or death, never make or break connections to 2410 while instrument is on.
