C0805X473K5RAC3316

SMD Multilayer Ceramic Capacitor, FT-CAP, 47000 pF, 50 V, 0805 [2012 Metric], ± 10%, X7R

KEMET C0805X473K5RAC3316

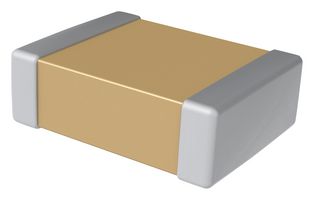

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEMET KEMET
Manufacturer Part No:
C0805X473K5RAC3316
Order Code:
2666911
Product Range
X Series FT-CAP
See all Technical Docs

Product Range Selector (X Series FT-CAP)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
47000pF

:
50V

:
0805 [2012 Metric]

:
± 10%

:
X7R

:
X Series FT-CAP

:
-55°C

:
125°C

:
AEC-Q200, VW80808

:
MSL 1 - Unlimited
Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Product Overview

KEMET's X Series (FT-CAP) capacitor in X7R dielectric incorporates a unique, flexible termination system that is integrated with KEMET's standard termination materials. A conductive silver epoxy is utilized between the base metal and nickel barrier layers of KEMET's standard termination system in order to establish pliability while maintaining terminal strength, solderability and electrical performance. This technology was developed in order to address the primary failure mode of MLCCs- flex cracks, which are typically the result of excessive tensile and shear stresses produced during board flexure and thermal cycling. Flexible termination technology inhibits the transfer of board stress to the rigid ceramic body, therefore mitigating flex cracks which can result in low IR or short circuit failures. Combined with the stability of an X7R dielectric, these flex-robust devices are RoHS Compliant, offer a 5 mm minimum of flex-bend and exhibit a predictable change in capacitance with respec
  • AEC-Q200 automotive qualified
  • EIA 0603, 0805, 1206 and 1210 case sizes available
  • DC voltage rating of 6.3V to 100V
  • Operating temperature range of -55°C to 125°C
  • Non polarity device, minimize installation concerns
  • Capacitance tolerances of ±5%, ±10% and ±20%
  • Non polarity device, minimize installation concerns

Applications

Consumer Electronics, Portable Devices, Power Management, Industrial

Packaging type Re-reel
