01490-9

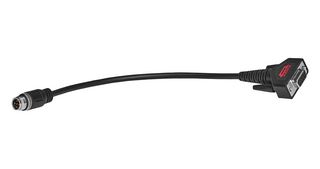

Adapter Cable, D Sub 9 Position Receptacle to M12 5 Position Plug, 300mm
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.8,932.300 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.8,932.30
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKVASER
Manufacturer Part No01490-9
Order Code4750122
Technical Datasheet
Connector Type AD Sub 9 Position Receptacle
Connector Type BM12 5 Position Plug
Cable Length - Imperial11.8"
Cable Length - Metric300mm
Jacket Colour-
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
01490-9 is a Kvaser M12 Dsub9 adapter for the Kvaser Leaf v3. With a standard 9-pin Dsub at one end and a NMEA compatible 5-pin connector at the other, this 30cm cable connects the Kvaser Leaf v3 or any CAN interface to equipment using the NMEA compatible connector, typically a marine electronics system. Kvaser’s adapter cables have a high quality, ruggedised construction that meet the IP67 standard for water and dust ingress.
- Standard 9-pin Dsub at one end and a NMEA compatible 5-pin connector at the other
- Temperature range from -40°C to 85°C
Technical Specifications
Connector Type A
D Sub 9 Position Receptacle
Cable Length - Imperial
11.8"
Jacket Colour
-
SVHC
No SVHC (25-Jun-2025)
Connector Type B
M12 5 Position Plug
Cable Length - Metric
300mm
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Tariff No:85044090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.052
