BMI-S-205-C
Shield, Cover, EMI, Surface Mount, 38.1 mm x 25.4 mm x 6 mm
Image is for illustrative purposes only. Please refer to product description.
9,223 In Stock
Need more?
9223 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.192.570 |
| 50+ | Rs.101.170 |
| 100+ | Rs.91.410 |
| 250+ | Rs.77.300 |
| 500+ | Rs.72.160 |
| 1250+ | Rs.56.890 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.192.57
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLAIRD
Manufacturer Part NoBMI-S-205-C
Order Code2497722
Technical Datasheet
Shielding TypeEMI Shielding
Gasket MaterialCold Rolled Steel
Product Length38.1mm
Product Width25.4mm
Product Depth6mm
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview

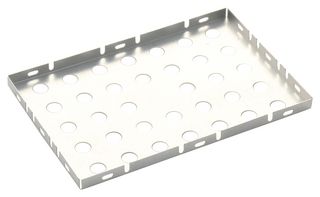

BMI-S-205-C is a two-piece board level shield cover.
- CRS material
- Snap fit mounting type
- Matte tin plating
- 1.25 to 5.00microns plating thickness
- Typical 6-12 months shelf life
- 10°C to 25°C storage temperature
- 0.13mm base material thickness
- 2.00mm height, 38.56mm length, 25.86mm width
Technical Specifications
Shielding Type
EMI Shielding
Product Length
38.1mm
Product Depth
6mm
SVHC
No SVHC (07-Nov-2024)
Gasket Material
Cold Rolled Steel
Product Width
25.4mm
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85332919
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001156
