S43-RS485

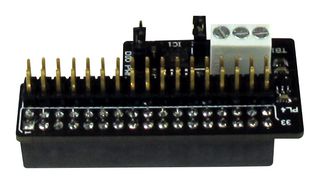

Daughter Board, PanelPilot ACE 4.3" Displays, Communication, RS485
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.1,965.620 |
| 5+ | Rs.1,926.310 |
| 10+ | Rs.1,887.000 |
| 20+ | Rs.1,847.690 |
| 50+ | Rs.1,808.380 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,965.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLASCAR
Manufacturer Part NoS43-RS485
Order Code2840027
Technical Datasheet
Application TypeAutomation and Product Evaluation
SVHCNo SVHC (07-Nov-2024)
Product Overview
S43-RS485 is an add-on module for the 4.3" SGD 43-A PanelPilotACE display, providing a three-wire RS485 interface with an optional 120Ω termination resistor. The board mounts directly to the rear of the SGD 43-A for a compact, integrated installation. Connections are made via A (Data+), B (Data–) and GND pins, supporting half-duplex communication. The PanelPilotACE software currently supports ASCII-based serial communication and MODBUS RTU, with additional protocol support under development.
- Receiver output high voltage is Vcc-0.6 (4.4V)
- Receiver output low voltage is 0.17V typical (0.4V maximum)
- Input current (V = 12V) is 80uA typical (125uA maximum)
- Input current (V=-7V) is 50uA typical (-100uA minimum)
- Maximum data rate is 20Mbps
- A/B voltage absolute maximum is -8V to +13V
- Operating temperature range from 0 to 40°C
