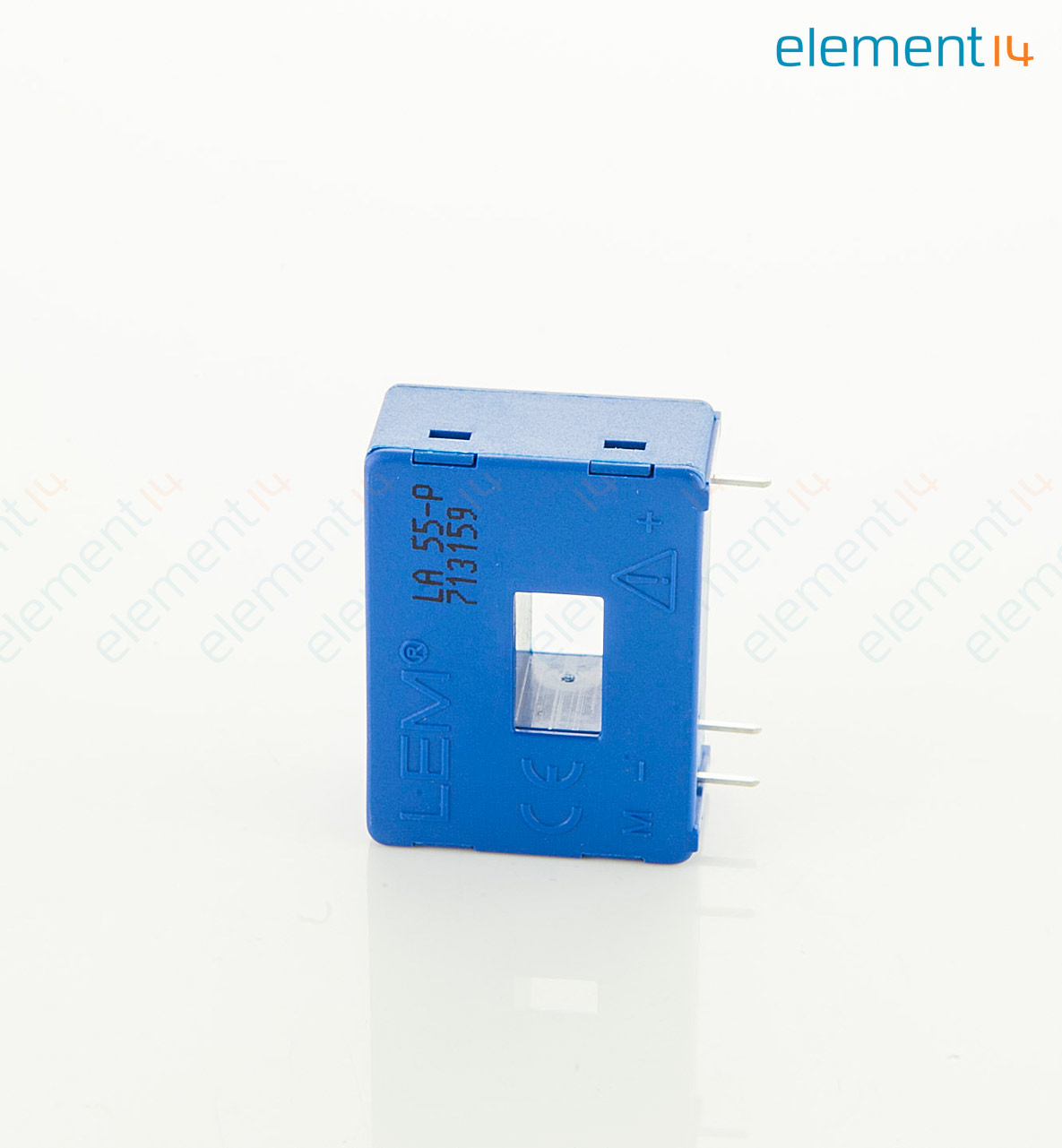

LA 55-P
Current Transducer, LA Series, 50A, -70A to 70A, 0.9 %, Closed Loop Output, 12 Vdc to 15 Vdc
- Manufacturer:
- LEM LEM
- Manufacturer Part No:
- LA 55-P
- Order Code:
- 1617405
- Product Range
- LA 55-P Series
- Technical Datasheet:
- LA 55-P Datasheet
Product Range Selector (LA 55-P Series)
See all from this product rangeProduct Overview
The LA 55-P from LEM is a current transducer. It features instantaneous output, excellent accuracy, very good linearity, low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high immunity to external interference and current overload capability. This current transducer is used for the electronic measurement of currents (DC, AC, pulsed, mixed) with galvanic separation between the primary circuit and the secondary circuit. It is mainly used in AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS) and power supplies for welding applications.
- Closed loop current transducer using the hall effect technology
- Primary nominal current of 50A
- 0.65% accuracy
- Primary current measuring range is ±70A
- Supply voltage range from ±12V to ±15V
- Conversion ratio is 1 : 1000
- Secondary nominal rms current is 50mA
- Insulated plastic case recognized according to UL 94-V0
- Operating temperature range from -40°C to 85°C
- PCB mounting
Applications
Industrial, Consumer Electronics, Portable Devices, Motor Drive & Control, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Closed Loop
- :
- -15V
- :
- 15V
- :
- -70A to 70A
- :
- -70A to 70A
- :
- 1µs
- :
- 0.9%
- :
- LA 55-P Series
