50 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | Rs.3,521.900 |
| 5+ | Rs.3,366.530 |
| 10+ | Rs.3,270.340 |
| 25+ | Rs.3,179.490 |
| 50+ | Rs.3,139.150 |
| 100+ | Rs.3,076.370 |
Product Information
Product Overview

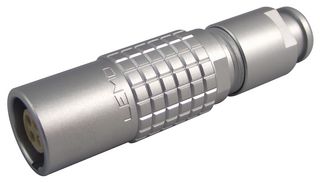

The PHG.1B.304.CLLD62Z is a 4-way Circular Connector, 1B series, free receptacle with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 1B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- 10A Current rating
- PEEK insulator
- G Key standard
- IP50 Protection rating
- 5000 Maximum matings
- 4.8mΩ Maximum resistance
- 0.9mm Contact diameter
- 360° Screening for full EMC shielding
- 4 Low voltage insert configuration
Applications
Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
Technical Specifications
Circular Industrial
Cable Mount Receptacle
Solder Socket
Brass Body
-
No SVHC (14-Jun-2023)
1B Series
4Contacts
Push-Pull
Chrome
-
Associated Products
5 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
