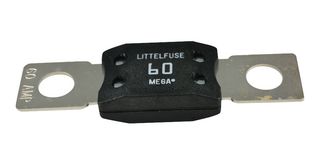

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0298060.ZXBCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 2840068 |
| Product Range | MEGA 298 |
| Your Part Number | |
| Technical Datasheet |
2,185 In Stock
500 more incoming. You can reserve stock now
2,185 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,038.000 |
| 10+ | Rs.963.480 |
| 50+ | Rs.749.480 |
| 100+ | Rs.643.430 |
| 200+ | Rs.639.720 |
| 500+ | Rs.636.010 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,038.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0298060.ZXBCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 2840068 |
| Product Range | MEGA 298 |
| Technical Datasheet | |
| Blow Characteristic | Time Delay |
| Fuse Current | 60A |
| Voltage Rating VDC | 32V |
| Auto Blade Fuse Size | 29.2mm x 19mm x 9.9mm |
| Product Range | MEGA 298 |
| SVHC | To Be Advised |
Product Overview
The 0298060.ZXB is a 60A/32VDC time delay Bolt-down Fuse with copper terminals. This 298-series fuse is designed for high current circuit protection up to 500A with diffusion pill technology and heavy gauge cables requiring ultra-high current protection.
- 2000A Interrupting rating
- 119mV Typical voltage drop
- 1.504mΩ Cold resistance
- -40 to 125°C Operating temperature range
Applications
Safety, Automotive
Technical Specifications
| Blow Characteristic | Time Delay |
|---|---|
| Voltage Rating VDC | 32V |
| Product Range | MEGA 298 |
| Fuse Current | 60A |
|---|---|
| Auto Blade Fuse Size | 29.2mm x 19mm x 9.9mm |
| SVHC | To Be Advised |
Technical Docs (2)
Alternatives for 0298060.ZXB
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .010705 |
