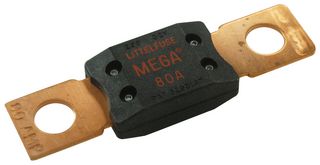

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0298080.ZXEHCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 1354630 |
| Your Part Number | |
| Technical Datasheet |
469 In Stock
1,000 more incoming. You can reserve stock now
469 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.746.260 |
| 10+ | Rs.666.000 |
| 50+ | Rs.517.920 |
| 100+ | Rs.458.420 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.746.26
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0298080.ZXEHCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 1354630 |
| Technical Datasheet | |
| Blow Characteristic | Time Delay |
| Fuse Current | 80A |
| Voltage Rating VDC | 32V |
| Auto Blade Fuse Size | 29.2mm x 19mm x 9.9mm |
| Product Range | - |
Product Overview
The 0298080.ZXEH is a MEGA®-series 80A, 32V time delay Fuse is designed for high current circuit protection up to 500A with diffusion pill technology and patented, the MEGA fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
- 87mV Voltage drop
- 0.72mΩ Cold resistance
- 2000A at 32VDC Interrupting rating
- Red color
Applications
Automotive
Technical Specifications
| Blow Characteristic | Time Delay |
|---|---|
| Voltage Rating VDC | 32V |
| Product Range | - |
| Fuse Current | 80A |
|---|---|
| Auto Blade Fuse Size | 29.2mm x 19mm x 9.9mm |
Technical Docs (2)
Alternatives for 0298080.ZXEH
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .010954 |
