Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0498060.MCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 3516004 |
| Product Range | MIDI 498 Series |
| Your Part Number | |
| Technical Datasheet |
1,995 In Stock
Need more?
1,995 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.240.920 |
| 50+ | Rs.185.510 |
| 100+ | Rs.173.090 |
| 250+ | Rs.168.620 |
| 500+ | Rs.164.140 |
| 1000+ | Rs.159.660 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.240.92
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0498060.MCopy |
| Manufacturer Standard Lead Time | 25 weeks |
| Order Code | 3516004 |
| Product Range | MIDI 498 Series |
| Technical Datasheet | |
| Blow Characteristic | Time Delay |
| Fuse Current | 60A |
| Voltage Rating VDC | 32V |
| Auto Blade Fuse Size | 41mm x 12mm x 8.3mm |
| Product Range | MIDI 498 Series |
| SVHC | To Be Advised |
Product Overview

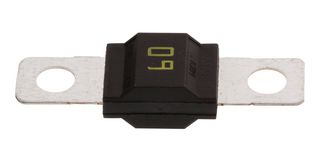

0498060.M is a MIDI® bolt-down fuse. This space-saving MIDI® fuse protects high-current wiring harnesses. The bolt-down automotive fuses employ diffusion pill technology to offer time-delay characteristics. Use MIDI fuses with ratings of 150A to 200A only for short circuit protection. Applications include cars, trucks, SUVs, offroad vehicles, buses, watercraft as approved by Littelfuse®. Complies with standard UL 248-1 as a Special Purpose Fuses in UL file E71611 (40-100A) and Directive 2011/65/EU.
- Color-coded ampere labels aid identification
- Compact design and light weight enable greater circuit protection in less space
- Refers to ISO 8820-5:2015
- 60A current rating, 32V DC voltage rating
- 6mm² test cable size
- 68mV typical voltage drop
- 0.87mohm typical cold resistance
- Black housing colour
- Recommended environmental temperature range from -40°C to +125°C
Technical Specifications
| Blow Characteristic | Time Delay |
|---|---|
| Voltage Rating VDC | 32V |
| Product Range | MIDI 498 Series |
| Fuse Current | 60A |
|---|---|
| Auto Blade Fuse Size | 41mm x 12mm x 8.3mm |
| SVHC | To Be Advised |
Technical Docs (1)
Alternatives for 0498060.M
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85361010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001937 |
