0FLU.440T

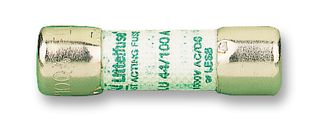

Fuse, Industrial/Power, Multimeter, FLU Series, 440 mA, 1 kV, 1 kV, 10 mm x 35 mm, 13/32" x 1-3/8"
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0FLU.440TCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 9943331 |
| Product Range | FLU Series |
| Your Part Number | |
| Technical Datasheet |
153 In Stock
Need more?
153 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.4,481.450 |
| 2+ | Rs.4,476.470 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.4,481.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 0FLU.440TCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 9943331 |
| Product Range | FLU Series |
| Technical Datasheet | |
| Product Range | FLU Series |
| Fuse Current | 440mA |
| Voltage Rating VAC | 1kV |
| Voltage Rating VDC | 1kV |
| Fuse Size Metric | 10.3mm x 34.9mm |
| Fuse Size Imperial | 0.4" x 1.37" |
| Blow Characteristic | Fast Acting |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
0FLU.440T is a FLU series cartridge and axial lead fast-acting 1000V fuse. It is specifically designed for the protection of multimeters. This midget fuse supplement the primary branch-circuit fuse or breaker to provide backup overcurrent protection. It also has the capability to limit currents with fast-acting reliability. Application includes multimeters, variety of applications using 1000V AC or DC. It is certified by UL recognized (File: E10480), CSA Certified (File: LR29862).
- 10x38mm size - common dimensions used in a variety of applications
- Fast-acting - provides fast short-circuit response within the interrupting rating
- POWR-GARD® technology - ensures quality backup overcurrent protection
- 44⁄100A amp rating, 1000VAC/DC voltage rating
- 10KA interrupting rating (AC/DC)
Technical Specifications
| Product Range | FLU Series |
|---|---|
| Voltage Rating VAC | 1kV |
| Fuse Size Metric | 10.3mm x 34.9mm |
| Blow Characteristic | Fast Acting |
| Fuse Current | 440mA |
|---|---|
| Voltage Rating VDC | 1kV |
| Fuse Size Imperial | 0.4" x 1.37" |
| SVHC | No SVHC (17-Dec-2014) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008 |
