55100-3M-03-A
Hall Effect Proximity Sensor, Flange Mount, Sink, Wire Leads, 12.5 mm, 3.8 to 24 VDC, 55100 Series

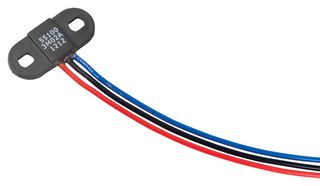

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No55100-3M-03-ACopy
Manufacturer Standard Lead Time40 weeks
Order Code4209273
Your Part Number
282 In Stock
500 more incoming. You can reserve stock now
282 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,061.150 |
| 10+ | Rs.954.150 |
| 25+ | Rs.923.330 |
| 50+ | Rs.908.930 |
| 100+ | Rs.894.520 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,061.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No55100-3M-03-ACopy
Manufacturer Standard Lead Time40 weeks
Order Code4209273
Technical Datasheet
Sensing Range Max12.5mm
Sensor TypeProximity Sensor
Supply Voltage DC Min3.8V
Activating Distance Min13mm
Supply Voltage DC Max24V
Activating Distance Max-
Output ConfigurationSink
Sensor MountingFlange
Output Voltage400mV
Sensor TerminalsWire Leads
Operating Temperature Min-40°C
Switching Speed0.1ms
Operating Temperature Max100°C
Technical Specifications
Sensing Range Max
12.5mm
Supply Voltage DC Min
3.8V
Supply Voltage DC Max
24V
Output Configuration
Sink
Output Voltage
400mV
Operating Temperature Min
-40°C
Operating Temperature Max
100°C
Sensor Type
Proximity Sensor
Activating Distance Min
13mm
Activating Distance Max
-
Sensor Mounting
Flange
Sensor Terminals
Wire Leads
Switching Speed
0.1ms
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85381090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00637
