LVR033K

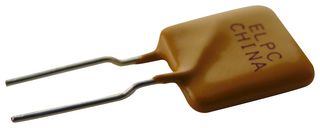

Resettable Fuse, PPTC, PolySwitch LVR, 240 VAC, 330 mA, 740 mA, 21 s, Rectangular
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | LVR033KCopy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1345912 |
| Product Range | PolySwitch LVR |
| Your Part Number | |
| Technical Datasheet |
2,218 In Stock
1,000 more incoming. You can reserve stock now
2,218 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.76.470 |
| 10+ | Rs.70.350 |
| 50+ | Rs.58.890 |
| 100+ | Rs.54.590 |
| 200+ | Rs.51.120 |
| 500+ | Rs.48.610 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.76.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | LVR033KCopy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 1345912 |
| Product Range | PolySwitch LVR |
| Technical Datasheet | |
| Product Range | PolySwitch LVR |
| Voltage Rating | 240VAC |
| Holding Current | 330mA |
| Trip Current | 740mA |
| Time to Trip | 21s |
| Fuse Shape | Rectangular |
| Current Rating Max | 4.5A |
| Lead Spacing | 5.8mm |
| Diameter | - |
| Length | 11.4mm |
| Thickness | 3.8mm |
| Height | 19mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| SVHC | To Be Advised |
Technical Specifications
| Product Range | PolySwitch LVR |
|---|---|
| Holding Current | 330mA |
| Time to Trip | 21s |
| Current Rating Max | 4.5A |
| Diameter | - |
| Thickness | 3.8mm |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| Voltage Rating | 240VAC |
|---|---|
| Trip Current | 740mA |
| Fuse Shape | Rectangular |
| Lead Spacing | 5.8mm |
| Length | 11.4mm |
| Height | 19mm |
| Operating Temperature Max | 85°C |
| SVHC | To Be Advised |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369090 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000628 |
