NANOSMDCH010F-02
Resettable Fuse, PPTC, 1206 (3216 Metric), PolySwitch nanoSMDC Series, 30 VDC, 100 mA, 350 mA

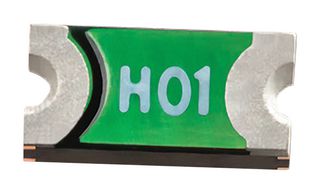

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | NANOSMDCH010F-02Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | Re-Reel2786663RL Cut Tape2786663 |
| Product Range | PolySwitch nanoSMDC Series |
| Your Part Number | |
| Technical Datasheet |
3,484 In Stock
Need more?
3,484 Delivery in 4-6 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 10 | Rs.68.120 | Rs.681.20 |
| Total Price | Rs.681.20 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 10+ | Rs.68.120 |
| 100+ | Rs.52.730 |
| 500+ | Rs.44.140 |
| 1000+ | Rs.40.890 |
| 2000+ | Rs.40.000 |
| 4000+ | Rs.39.880 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | NANOSMDCH010F-02Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | Re-Reel2786663RL Cut Tape2786663 |
| Product Range | PolySwitch nanoSMDC Series |
| Technical Datasheet | |
| PPTC Case Style | 1206 (3216 Metric) |
| Product Range | PolySwitch nanoSMDC Series |
| Voltage Rating | 30VDC |
| Holding Current | 100mA |
| Trip Current | 350mA |
| Time to Trip | 0.1s |
| Current Rating Max | 10A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
Technical Specifications
| PPTC Case Style | 1206 (3216 Metric) |
|---|---|
| Voltage Rating | 30VDC |
| Trip Current | 350mA |
| Current Rating Max | 10A |
| Operating Temperature Max | 85°C |
| Product Range | PolySwitch nanoSMDC Series |
|---|---|
| Holding Current | 100mA |
| Time to Trip | 0.1s |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
Alternatives for NANOSMDCH010F-02
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Japan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85361010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000113 |
