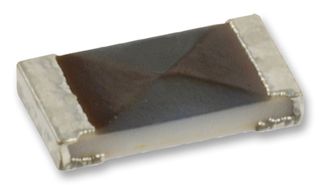

PGB1010603NR
ESD Protection Device, 150 V, 0603, 2 Pins, 24 VDC, PGB10
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | PGB1010603NRCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | Full Reel2412904 Re-Reel2383319RL Cut Tape2383319 |
| Product Range | PGB10 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | Rs.87.270 | Rs.87.27 |
| Total Price | Rs.87.27 | ||
| Quantity | Price |
|---|---|
| 1+ | Rs.87.270 |
| 50+ | Rs.59.080 |
| 250+ | Rs.46.970 |
| 1000+ | Rs.46.030 |
| 3000+ | Rs.45.090 |
| Quantity | Price |
|---|---|
| 5000+ | Rs.43.580 |
| 15000+ | Rs.39.220 |
| 25000+ | Rs.36.890 |
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | PGB1010603NRCopy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | Full Reel2412904 Re-Reel2383319RL Cut Tape2383319 |
| Product Range | PGB10 |
| Technical Datasheet | |
| Clamping Voltage Vc Max | 150V |
| Diode Case Style | 0603 |
| No. of Pins | 2Pins |
| Operating Voltage | 24VDC |
| Power Dissipation Pd | - |
| Product Range | PGB10 |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The PGB1010603NR is a PulseGuard® bidirectional surface mount polymeric ESD Suppressor for network hardware and external storage. It helps to protect sensitive electronic equipment against electrostatic discharge (ESD). It supplements the on-chip protection of integrated circuitry and is best suited for low voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. PulseGuard® suppressor use polymer composite materials to suppress fast-rising ESD transients (as specified in IEC 61000-4-2 and MIL-STD-883E), while adding virtually no capacitance to the circuit.
- Extended pulse life over previous versions
- New, reduced trigger voltage
- Ultra-low capacitance
- Low leakage current
- Fast response time
- 1-line of protection
Applications
Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Aerospace, Defence, Military
Technical Specifications
| Clamping Voltage Vc Max | 150V |
|---|---|
| No. of Pins | 2Pins |
| Power Dissipation Pd | - |
| Automotive Qualification Standard | - |
| Diode Case Style | 0603 |
|---|---|
| Operating Voltage | 24VDC |
| Product Range | PGB10 |
| SVHC | No SVHC (17-Dec-2014) |
Technical Docs (2)
Alternatives for PGB1010603NR
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
