RF3221-000
Resettable Fuse, PPTC, PolySwitch RGEF Series, 16 VDC, 2.5 A, 4.7 A, 5 s, Rectangular

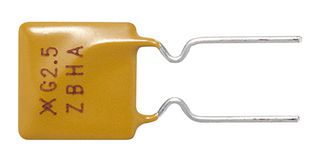

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | RF3221-000Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3515890 |
| Product Range | PolySwitch RGEF Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 15 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.70.820 |
| 10+ | Rs.53.720 |
| 50+ | Rs.45.030 |
| 100+ | Rs.39.920 |
| 200+ | Rs.34.800 |
| 500+ | Rs.29.720 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.70.82
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | RF3221-000Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3515890 |
| Product Range | PolySwitch RGEF Series |
| Technical Datasheet | |
| Product Range | PolySwitch RGEF Series |
| Voltage Rating | 16VDC |
| Holding Current | 2.5A |
| Trip Current | 4.7A |
| Time to Trip | 5s |
| Fuse Shape | Rectangular |
| Current Rating Max | 100A |
| Lead Spacing | 5.8mm |
| Diameter | - |
| Length | 8.9mm |
| Thickness | 3mm |
| Height | 12.8mm |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
Technical Specifications
| Product Range | PolySwitch RGEF Series |
|---|---|
| Holding Current | 2.5A |
| Time to Trip | 5s |
| Current Rating Max | 100A |
| Diameter | - |
| Thickness | 3mm |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| Voltage Rating | 16VDC |
|---|---|
| Trip Current | 4.7A |
| Fuse Shape | Rectangular |
| Lead Spacing | 5.8mm |
| Length | 8.9mm |
| Height | 12.8mm |
| Operating Temperature Max | 85°C |
Technical Docs (2)
Alternatives for RF3221-000
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85361010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000277 |
