HRL-5-E-S-2
Keylock Switch, Off-On, SPST, HRL Series, 1 Position, Solder, 1 A

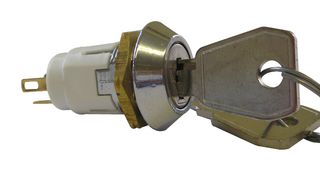

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLORLIN
Manufacturer Part NoHRL-5-E-S-2
Order Code1876056
Product RangeHRL Series
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.890.620 |
| 5+ | Rs.856.860 |
| 10+ | Rs.830.660 |
| 20+ | Rs.797.980 |
| 50+ | Rs.768.600 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.890.62
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLORLIN
Manufacturer Part NoHRL-5-E-S-2
Order Code1876056
Product RangeHRL Series
Technical Datasheet
Switch OperationOff-On
Contact ConfigurationSPST
Product RangeHRL Series
No. of Switch Positions1 Position
Switch TerminalsSolder
Contact Current Max1A
Contact Voltage AC Nom115V
Contact Voltage DC Nom24V
Angle of Throw90°
SVHCLead (21-Jan-2025)
Product Overview
The HRL-5-E-S-2 is a SPDT Lock Switch with tapered lock head 90° indexing. It has silver-plated brass contacts, G.F polyamide 6.6 moulding and chromium-plated bright zinc alloy lock housing. It comes with 2 nickel-plated mild steel keys per lock. It can be easily assembled through front of equipment panel.
- UL94V-0 Flammability rating
- Occupies small panel area
- Special high retention module
- <gt/>999MΩ at 500VDC Initial insulation resistance
- <lt/>20Ωm Initial contact resistance
- -20 to 65°C Operating temperature range
Applications
Industrial, Portable Devices, Automotive
Technical Specifications
Switch Operation
Off-On
Product Range
HRL Series
Switch Terminals
Solder
Contact Voltage AC Nom
115V
Angle of Throw
90°
Contact Configuration
SPST
No. of Switch Positions
1 Position
Contact Current Max
1A
Contact Voltage DC Nom
24V
SVHC
Lead (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03538
