1636 03

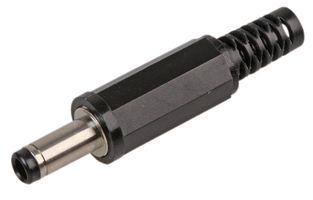

DC Power Connector, Plug, 2 A, 9.5 mm, Cable Mount, Solder
Image is for illustrative purposes only. Please refer to product description.
501 In Stock
Need more?
501 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.178.900 |
| 10+ | Rs.163.390 |
| 100+ | Rs.152.020 |
| 500+ | Rs.144.380 |
| 1000+ | Rs.133.830 |
| 2500+ | Rs.125.510 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.178.90
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
The 1636 03 is a 2-pole low-voltage Power Supply Plug with solder contact termination, PC insulating body, nickel-plated CuZn contact, POM insulation and PP housing, 2A/10.5VDC rated. Straight version, with solder eyes and bend protection. This plug is ideal for cable mount.
- 500V/60s Test voltage
- ≥100MΩ Insulation resistance
- According to JEITA RC-5320A JSAP3
Applications
Power Management
Technical Specifications
Gender
Plug
Pin Diameter
-
Connector Mounting
Cable Mount
Barrel Inner Diameter
1.7mm
Voltage Rating
10.5V
SVHC
No SVHC (25-Jun-2025)
Current Rating
2A
Barrel Length
9.5mm
Contact Termination Type
Solder
Barrel Outer Diameter
4.75mm
Product Range
-
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00192
