SSI-LXH312ID-150
LED Panel Mount Indicator, QuasarBrite, Red, 2 VDC, 4 mm, 20 mA, 30 mcd, Not Rated

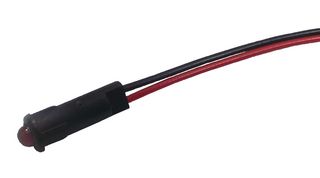

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLUMEX
Manufacturer Part NoSSI-LXH312ID-150
Order Code2062420
Your Part Number
Technical Datasheet
3,367 In Stock
Need more?
40 Delivery in 3-5 Business Days(SG stock)
3327 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.113.060 |
| 10+ | Rs.78.490 |
| 25+ | Rs.70.520 |
| 50+ | Rs.62.550 |
| 100+ | Rs.54.570 |
| 500+ | Rs.48.780 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.113.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The SSI-LXH312ID-150 is a high intensity red LED Panel Mount Indicator made of GaAsP die and red diffused lens. It features state-of-the-art, high brightness LED chip technology, easy installation through panel and blinking LED. It also features 635nm peak wavelength and 60° viewing angle.
- Holder - Black, Nylon 94-V
- Anode Lead - 26AWG, Cut 158mm long, Strip - 3.0mm & 6.0mm
- Cathode Lead - 26AWG, Cut 158mm long, Strip - 3.0mm & 6.0mm
- Mounting hole - DIA 4.3 mm - 4.4mm
Applications
LED Lighting, Security, Medical, Automation & Process Control
Technical Specifications
LED Colour
Red
Mounting Hole Dia
4mm
Luminous Intensity
30mcd
Product Range
-
Operating Voltage
2VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Thailand
Country in which last significant manufacturing process was carried out
Tariff No:85414090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
