L218-5080048C00000

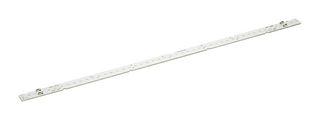

LED Module, LUXEON XR-3020, Board + LED, White, 5000 K, 2176 lm
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | LUMILEDS |
|---|---|
| Manufacturer Part No | L218-5080048C00000Copy |
| Manufacturer Standard Lead Time | 33 weeks |
| Order Code | 2834422 |
| Product Range | LUXEON XR-3020 |
| Your Part Number | |
| Technical Datasheet |
25 In Stock
Need more?
25 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,819.600 |
| 5+ | Rs.1,783.210 |
| 10+ | Rs.1,746.820 |
| 50+ | Rs.1,710.430 |
| 100+ | Rs.1,674.040 |
| 250+ | Rs.1,637.640 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,819.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LUMILEDS |
|---|---|
| Manufacturer Part No | L218-5080048C00000Copy |
| Manufacturer Standard Lead Time | 33 weeks |
| Order Code | 2834422 |
| Product Range | LUXEON XR-3020 |
| Technical Datasheet | |
| Product Range | LUXEON XR-3020 |
| LED Colour | White |
| CCT | 5000K |
| Luminous Flux @ Test | 2176lm |
| Luminous Flux @ Max | - |
| Power Rating | - |
| Supply Voltage | - |
| Forward Current @ Test | 400mA |
| Power Module Configuration | Linear |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| MSL | MSL 1 - Unlimited |
Product Overview
LUXEON XR-3020 series ultra-slim linear LED module optimized for narrow (20mm wide) lighting applications.
- 2098lumen at 100mA/LED and 45°C board temperature
- 1561lm/W for maximum light output and low power consumption
- 48 LEDs mounted on a CEM3 thermally conductive substrate
- 5000K CCT with 80 CRI minimum
- Uses the industry’s most compact, highest drive current 3V mid power LEDs-LUXEON 3020
- Greater than 50K hours LED lifetime (L70)
- 5 year limited warranty
- 560mm x 20mm dimension
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
| Product Range | LUXEON XR-3020 |
|---|---|
| CCT | 5000K |
| Luminous Flux @ Max | - |
| Supply Voltage | - |
| Power Module Configuration | Linear |
| Operating Temperature Max | 85°C |
| LED Colour | White |
|---|---|
| Luminous Flux @ Test | 2176lm |
| Power Rating | - |
| Forward Current @ Test | 400mA |
| Operating Temperature Min | -40°C |
| MSL | MSL 1 - Unlimited |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423100 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
