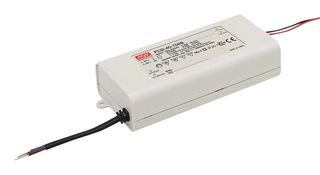

MEAN WELL PCD-40-700B

LED Driver, LED Lighting, 39.9 W, 57 V, 700 mA, Constant Current, 180 VAC

MEAN WELL PCD-40-700B
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MEAN WELL MEAN WELL
Manufacturer Part No:
PCD-40-700B
Order Code:
4206571
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
PCD-40-700B   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (PCD-40 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
LED Lighting

:
39.9W

:
57V

:
700mA

:
Constant Current

:
180VAC

:
295VAC

:
PCD-40 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

PCD-40-700B is a PCD-40 series single output AC dimmable LED power supply. Safety standards are ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, IP42 approved.
  • AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function, constant current design
  • Protections: short circuit / overtemperature
  • Cooling by free air convection, fully isolated plastic case
  • IP42 design, class II power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
  • 100% full load burn-in test, low cost, high reliability, 3 years warranty
  • 700mA output rated current, 34 ~ 57V operating output voltage range
  • 39.9W output rated power, 86% typical efficiency
  • Working temperature range from -30 to +50℃, dimension(L x W x H) is 128 x 60 x 31.5mm
