SMTC-1161

Soldering Iron Tip, Knife, 2.03 mm

METCAL SMTC-1161

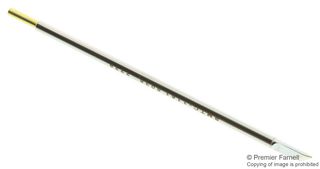

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
METCAL METCAL
Manufacturer Part No:
SMTC-1161
Order Code:
4950926
Product Range
MX System Series
Technical Datasheet:
SMTC-1161   Datasheet
See all Technical Docs

Product Range Selector (MX System Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
2.03mm

:
Knife

:
Metcal MX-5200, MX-5000, MX-500 Soldering Station, MX-H1-AV, MX-RM3E Solder Pen, MX-UK1 Upgrade-Kit

:
MX System Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The SMTC-1161 is a 4.8 x 16.51mm 45° knife Soldering Iron Tip for use with the MX series soldering and rework with MX-H1-AV and MX-RM3E handpieces for conduction rework of surface mount components. The knife cartridge is ideal for multi-lead soldering and particularly suited to soldering of J-leaded components such as PLCCs and DRAMS. Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead free soldering needs as well as complete process control. SmartHeat® technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration.
  • 4,8 mm Tip / Nozzle Width
  • 16,5 mm Tip / Nozzle Length
  • Style - Knife, 45˚ Bevelled, Tinned Area Length 2 mm
  • 390 °C Soldering Idle Temperature
  • 700 = FR4/Fiber Glass, for most standard applications

Applications

Maintenance & Repair
