31230104

Terminal Block, Header, 5.08 mm, 4 Ways, 15 A, 300 V, Through Hole Right Angle

31230104 - Terminal Block, Header, 5.08 mm, 4 Ways, 15 A, 300 V, Through Hole Right Angle

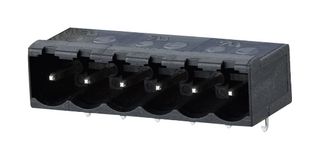

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
31230104
Order Code:
2774402
Technical Datasheet:
31230104   Datasheet
See all Technical Docs

Product Overview

The 31230104 from Metz Connect is a PT116xxHBBN (Type 230) series solderable pin header with 4 poles. The 5.08mm pitch, 90° terminals plugged into the PCB and then soldered.
  • Closed ends
  • Codeable
  • Insulating material is black colour PA66 (class CTI 600), contact pin material is CuFe
  • Solder pin dimension is 1mm x 1mm, solder pin length is 3.45mm
  • Recommended PC board hole diameter is 1.5mm
  • Clearance and creepage distances is 4.08mm
  • IP 00 protection category according to IEC 60529
  • Operating temperature range from -40°C to 105°C
  • Overvoltage category III, pollution degree 3, 320V rated voltage, 4KV rated test voltage
  • Approved by UL, CRJUS, SEV standards

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Header

:
5.08mm

:
4Ways

:
15A

:
300V

:
Through Hole Right Angle

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

281 In stock Need more?

281 available for 4 - 6 business days delivery

Rs.71.77

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 10 Minimum: 10
Quantity Price Your Price


10+ Rs.71.77
