360410
Wire-To-Board Terminal Block, 1 Ways, 30 AWG, 18 AWG, Screw

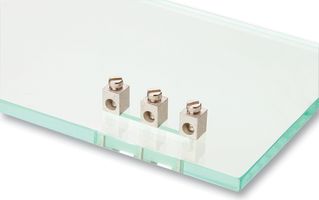

Image is for illustrative purposes only. Please refer to product description.
1,891 In Stock
Need more?
1891 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | Rs.59.240 |
| 25+ | Rs.51.820 |
| 50+ | Rs.46.850 |
| 100+ | Rs.42.520 |
| 250+ | Rs.37.820 |
| 500+ | Rs.34.980 |
| 2000+ | Rs.30.860 |
| 6000+ | Rs.28.720 |
Price for:Each
Minimum: 10
Multiple: 10
Rs.592.40
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMETZ CONNECT
Manufacturer Part No360410
Order Code1688168
Technical Datasheet
Pitch Spacing-
No. of Positions1Ways
Wire Size AWG Min30AWG
Wire Size AWG Max18AWG
Conductor Area CSA-
Wire Connection MethodScrew
Rated Current15A
Rated Voltage-
Block OrientationThrough Hole Right Angle
Product Range-
Product Overview
The 360410 is a 1-pole metallic wire-to-board Screw Terminal Block with through-hole solderable and double solder pins. It has nickel-tin-plated CuZn terminal with zinc-chromate(VI) screw surface. It is used for 30 to 12AWG wire sizes with direction of connection 90°.
- Open construction, screw brought down by hand
- IP00 Protection
Applications
Industrial
Technical Specifications
Pitch Spacing
-
Wire Size AWG Min
30AWG
Conductor Area CSA
-
Rated Current
15A
Block Orientation
Through Hole Right Angle
No. of Positions
1Ways
Wire Size AWG Max
18AWG
Wire Connection Method
Screw
Rated Voltage
-
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000454
