3700-0200-15

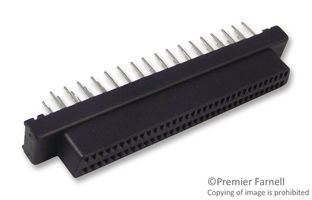

I/O Connector, 68 Contacts, Receptacle, SCSI, Through Hole, PCB Mount
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMH CONNECTORS
Manufacturer Part No3700-0200-15
Order Code2373611
Your Part Number
Technical Datasheet
3,107 In Stock
Need more?
3107 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.999.430 |
| 10+ | Rs.842.320 |
| 100+ | Rs.749.140 |
| 250+ | Rs.702.280 |
| 500+ | Rs.666.220 |
| 1000+ | Rs.626.380 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.999.43
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMH CONNECTORS
Manufacturer Part No3700-0200-15
Order Code2373611
Technical Datasheet
No. of Contacts68Contacts
Connector TypeSCSI
Contact Termination TypeThrough Hole
Product Range-
Connector MountingPCB Mount
Contact PlatingGold Plated Contacts
Contact MaterialPhosphor Bronze
SVHCNo SVHC (27-Jun-2024)
Product Overview
The 3700-0200-15 is a through-hole SCSI I/O Connector with gold-plated phosphor bronze contact and black PBT thermoplastic housing.
- 0.5A Contact current rating
- <gt/>500MΩ Minimum insulation resistance
- 35mΩ maximum contact resistance
- -55 to 85°C Operation temperature range
Applications
Industrial
Technical Specifications
No. of Contacts
68Contacts
Connector Type
SCSI
Product Range
-
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Gender
Receptacle
Contact Termination Type
Through Hole
Connector Mounting
PCB Mount
Contact Material
Phosphor Bronze
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
