MHDTZK-25-K
D Sub Backshell, Diecast, MHDTZK, DB, 180°, Zinc Body

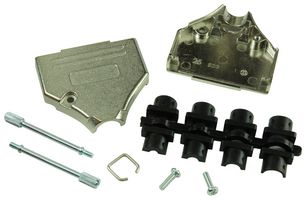

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDTZK-25-KCopy
Manufacturer Standard Lead Time26 weeks
Order Code463036
Product RangeMHDTZK
Also Known AsDTZK-25-K, 6560-0805-03
Your Part Number
5,749 In Stock
8,400 more incoming. You can reserve stock now
455 Delivery in 3-5 Business Days(SG stock)
5,294 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.424.450 |
| 10+ | Rs.363.020 |
| 100+ | Rs.310.510 |
| 250+ | Rs.294.570 |
| 500+ | Rs.278.630 |
| 1000+ | Rs.265.970 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.424.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDTZK-25-KCopy
Manufacturer Standard Lead Time26 weeks
Order Code463036
Product RangeMHDTZK
Also Known AsDTZK-25-K, 6560-0805-03
Technical Datasheet
Product RangeMHDTZK
D Sub Shell SizeDB
Cable Exit Angle180°
Connector Body MaterialZinc Body
SVHCNo SVHC (27-Jun-2024)
Product Overview
The MHDTZK-25-K from MH Connectors is a 25 position D sub backshell kit with top cable entry. It provides excellent EMI shielding.
- Nickel plated die-cast zinc backshell material
- Operating temperature range from -40°C to 120°C
- Cable outer diameter up to 13mm
- Standard assembly with C-clip
- Re-openable
- Strain relief inserts ensure a secure termination
Contents
Two backshell halves, Two 4-40 thumbscrews, Two housing screws, One set of compression inserts, One compression spring.
Technical Specifications
Product Range
MHDTZK
Cable Exit Angle
180°
SVHC
No SVHC (27-Jun-2024)
D Sub Shell Size
DB
Connector Body Material
Zinc Body
Technical Docs (4)
Alternatives for MHDTZK-25-K
5 Products Found
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.078
