AC244051
Daughter Board, PIC16F1509-ICE Processor Expansion Pack, For PIC16F1508/7/3/1 MCU's
Product Information
Product Overview
AC244051 is a PIC16F1509-ICE processor extension pak is intended for those who wish to debug the PIC16F1509 family of microcontrollers in circuit, while freeing up I/O pins typically reserved for debugger use. The product is required for debugging the PIC16F1508/7/3/1 devices. The included SIL adapter interfaces the Processor Extension Pak with the MPLAB REAL ICE and MPLAB ICD 3 tools. The main product will interface directly with the PICkit 3 without the use of the SIL adapter.
Applications
Embedded Design & Development
Contents

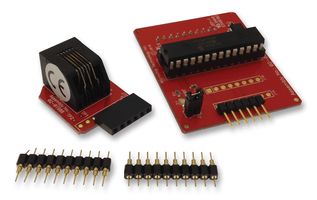

Processor extension pak, SIL adapter, Two headers.
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
Microchip
PIC16
PIC16F
Processor Extension Pak PIC16F1509-ICE, RJ11 Jack to SIL Adapter
No SVHC (10-Jun-2022)
PIC
PIC16F1509
PIC16F1509 Family Microcontrollers
TUK SGACK902S Keystone Coupler
Associated Products
4 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
RoHS
