AC320006
PIC32MZ Starter Kit Adaptor Board, 168Pin To 132Pin Connector
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC320006Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2366167 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.8,957.360 |
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC320006Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 2366167 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| Core Architecture | PIC |
| Core Sub-Architecture | - |
| Silicon Core Number | - |
| Silicon Family Name | PIC32MZ |
| For Use With | PIC32MZ Starter Boards |
| Kit Contents | Starter Kit Adaptor Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

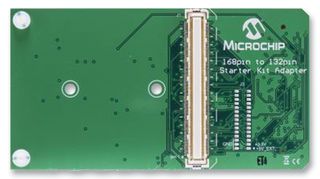

AC320006 is an adapter board for use with PIC32MZ starter kit. It features a 168-pin to 132-pin connector, enables the use of PIC32MZ starter kits that have a 168-pin interface with the following PIC32 hardware: Multimedia Expansion Board (MEB) (Part # DM320005), PIC32 I/O Expansion Board (Part # DM320002), low-cost controller-less (LCC) Graphics PICtail Plus daughter board (Part # AC164144), Graphics LCD Controller PICtail Plus SSD1926 Board (Part # AC164127-5), Graphics PICtail Plus Epson S1D13517 Board (Part # AC164127-7).
Notes
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | PIC32MZ |
| Kit Contents | Starter Kit Adaptor Board |
| SVHC | No SVHC (04-Feb-2026) |
| Core Architecture | PIC |
|---|---|
| Silicon Core Number | - |
| For Use With | PIC32MZ Starter Boards |
| Product Range | - |
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85389000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .101151 |
